HB-MINI

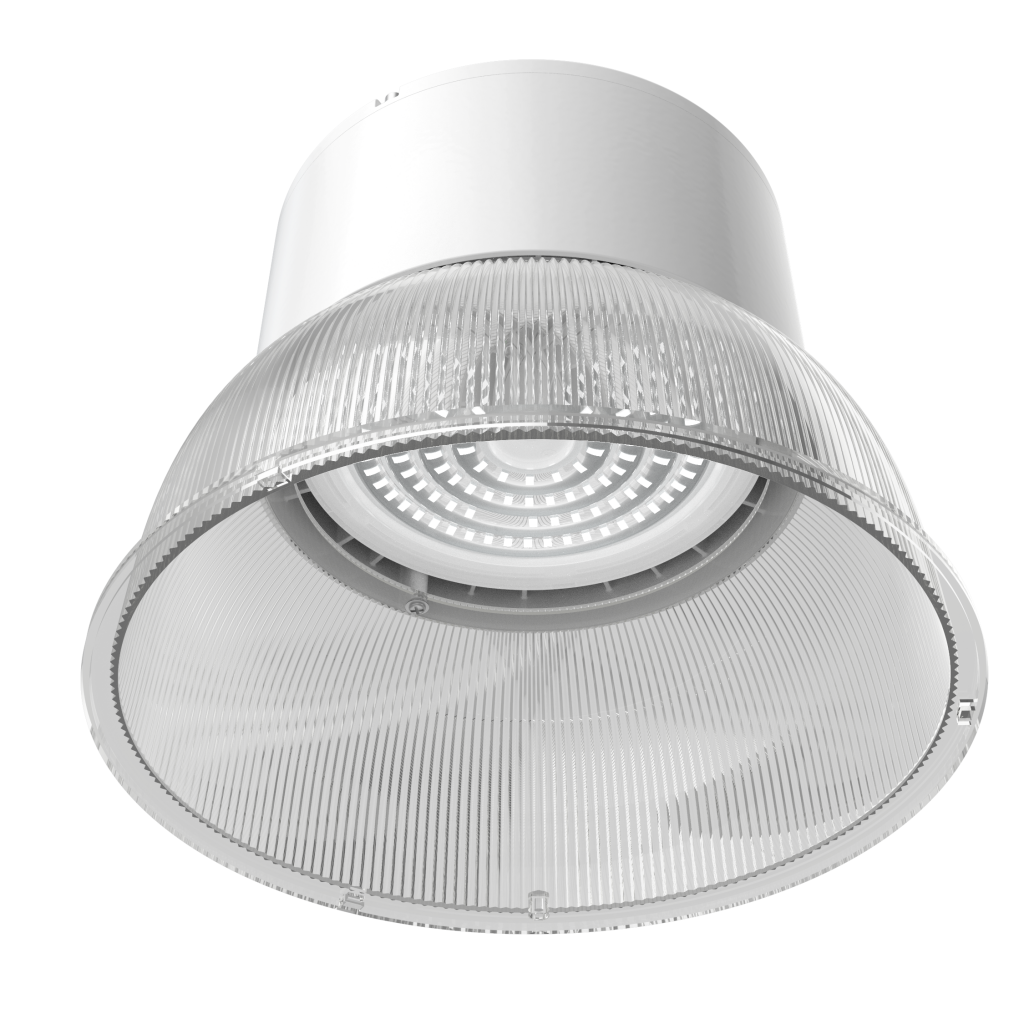

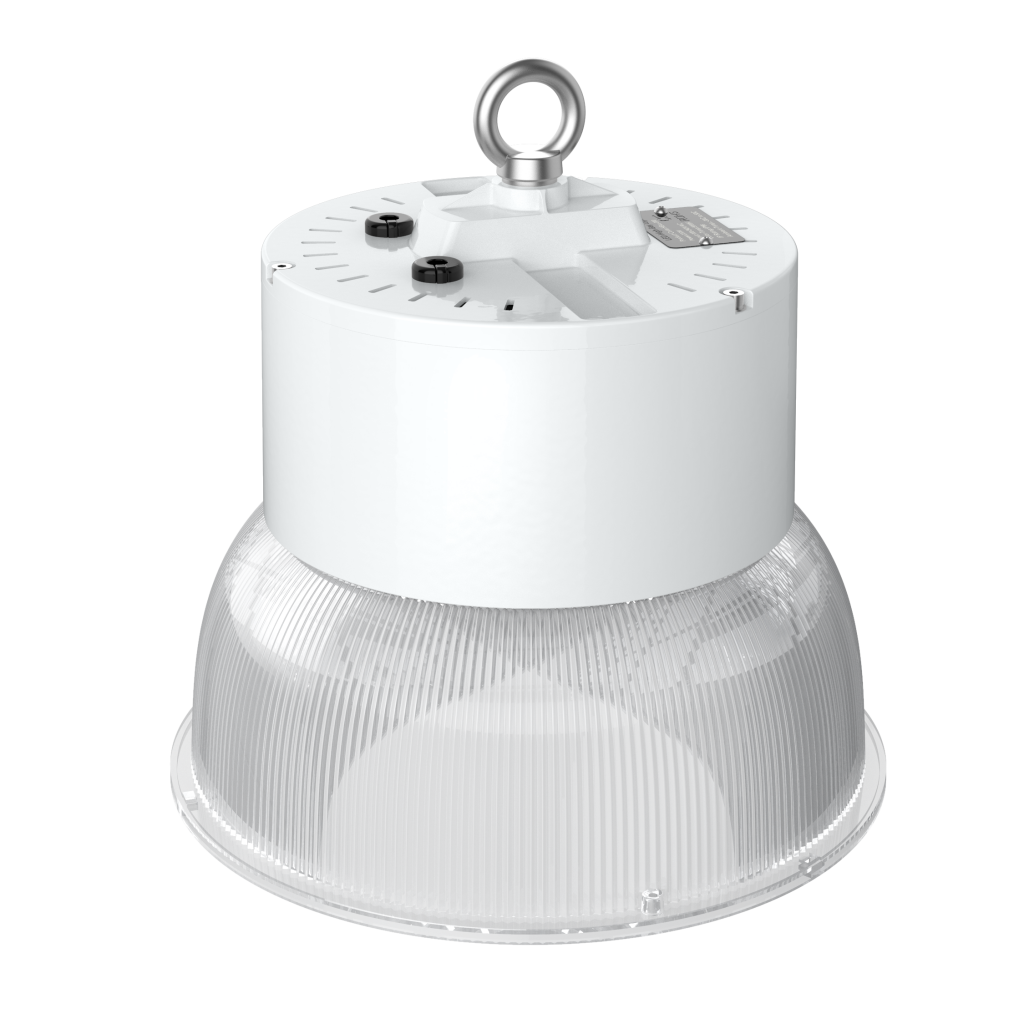

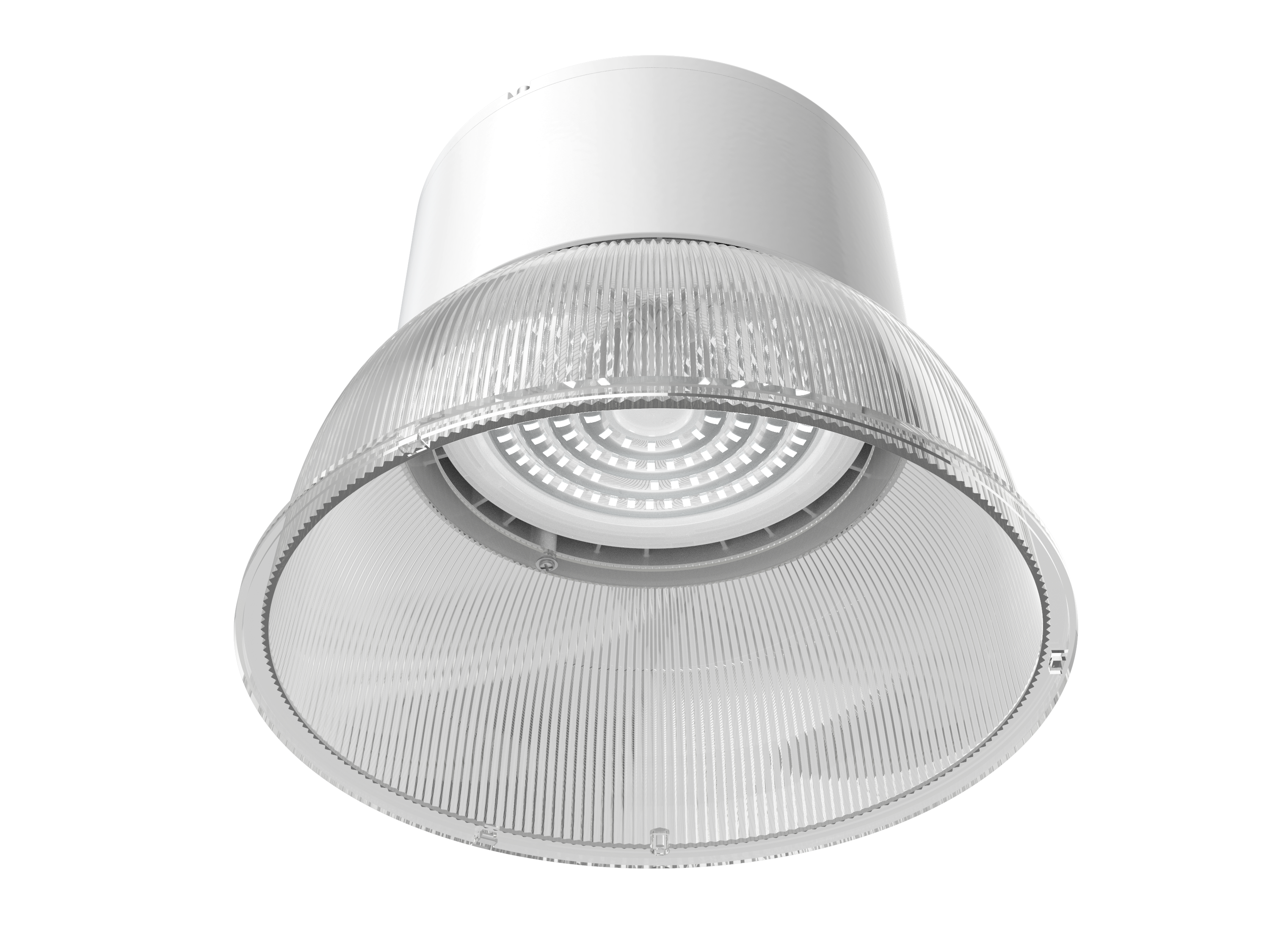

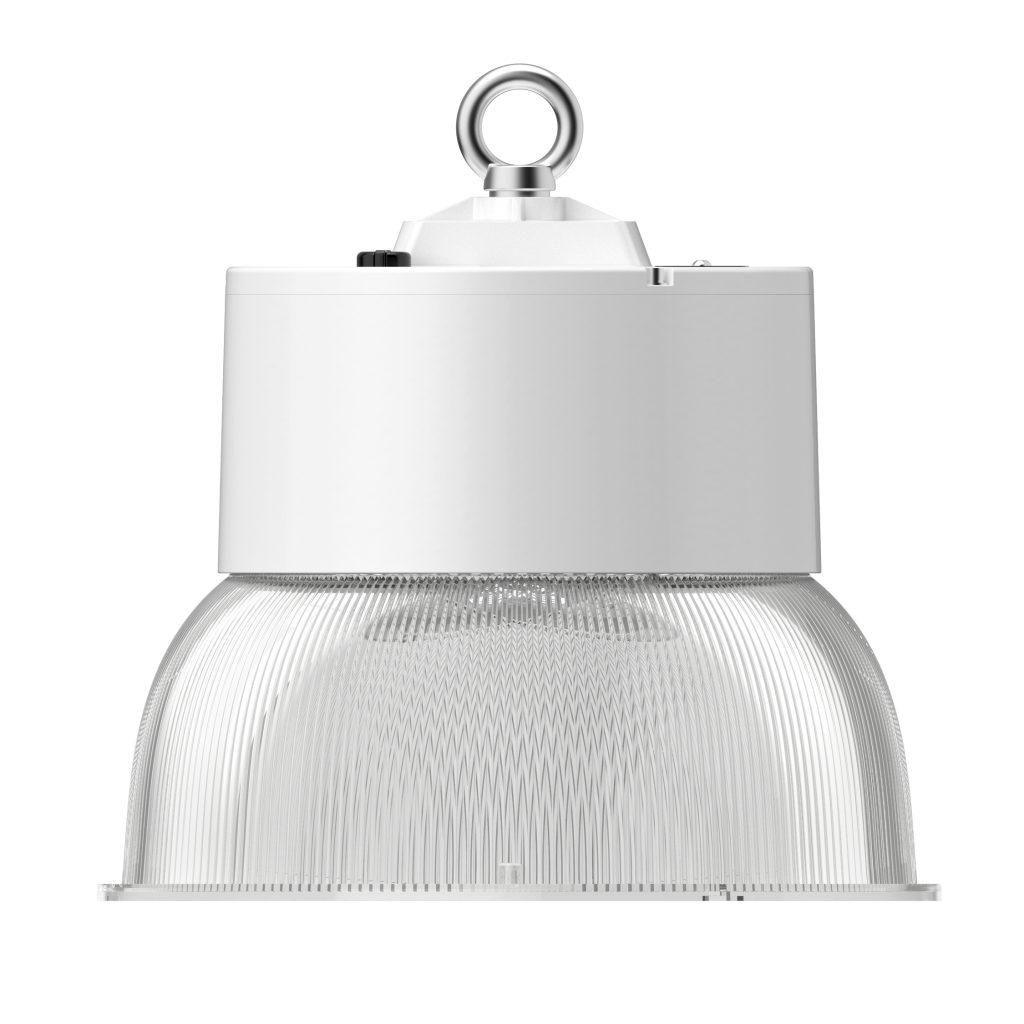

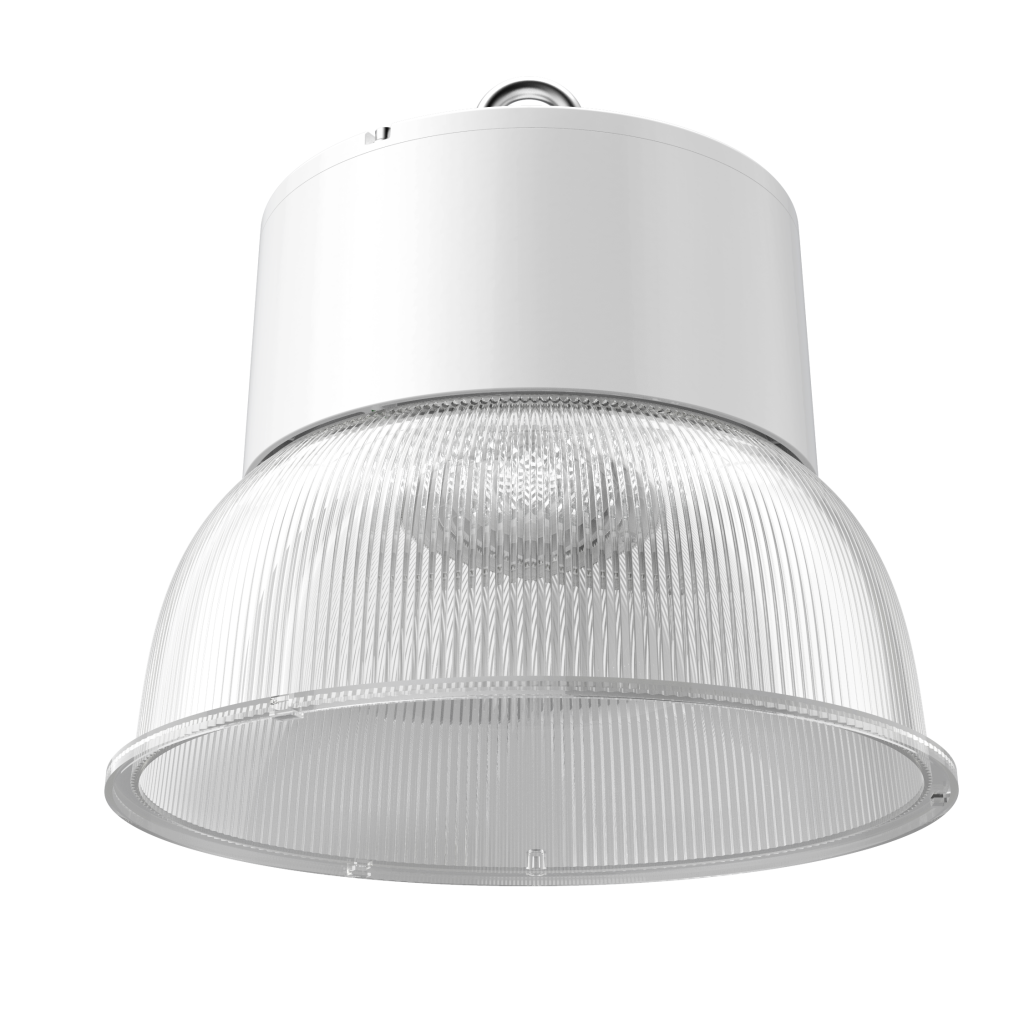

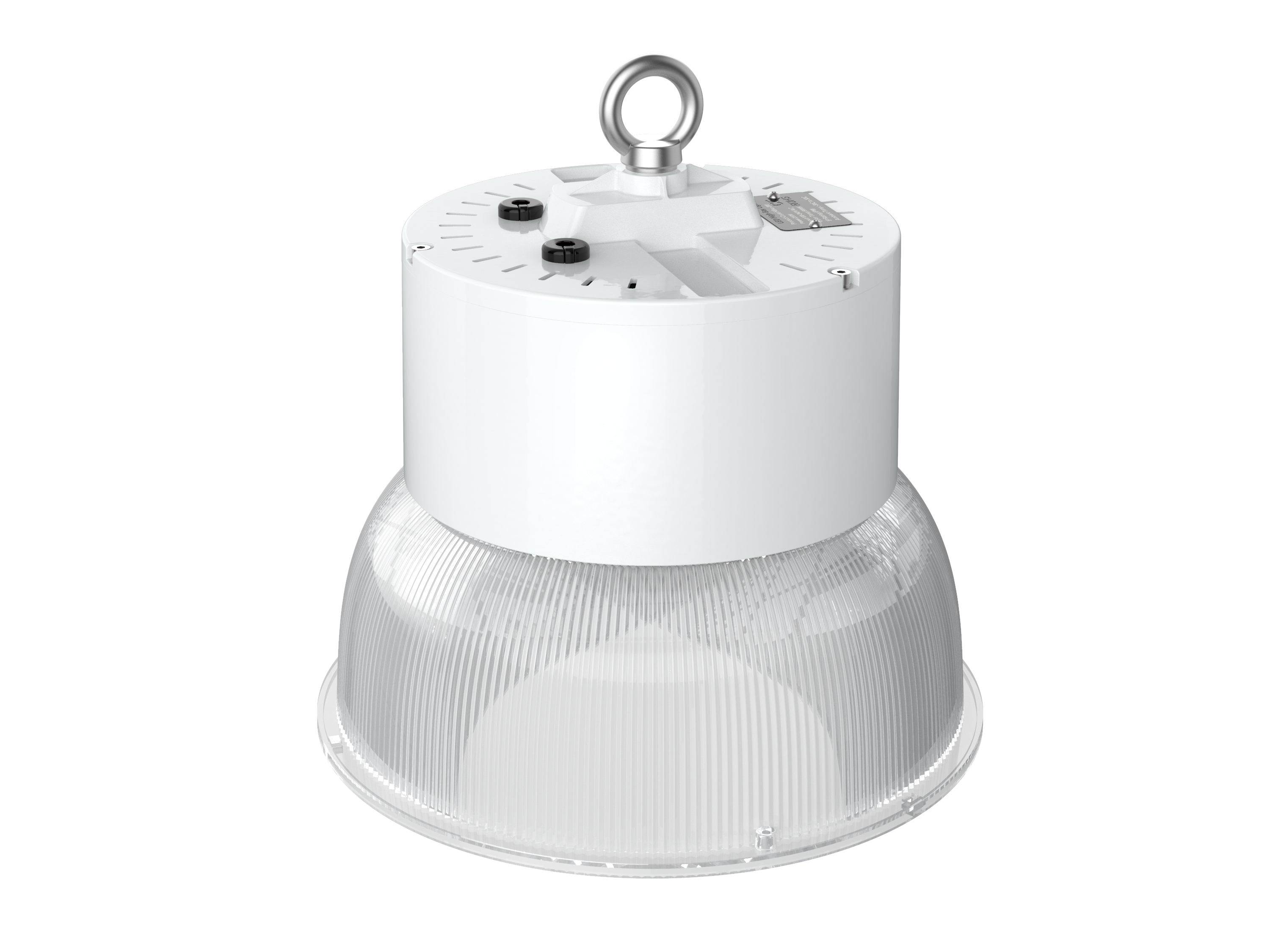

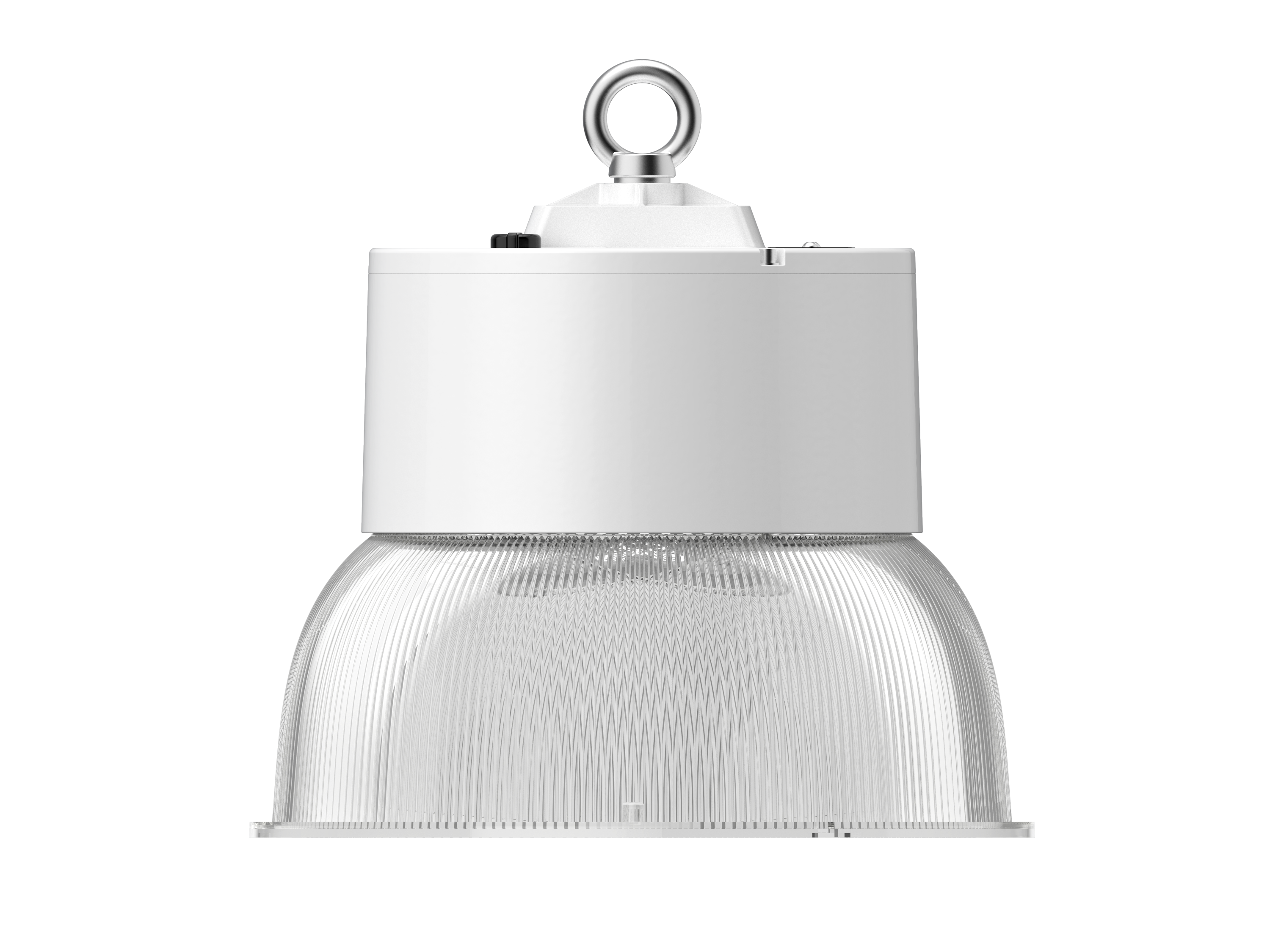

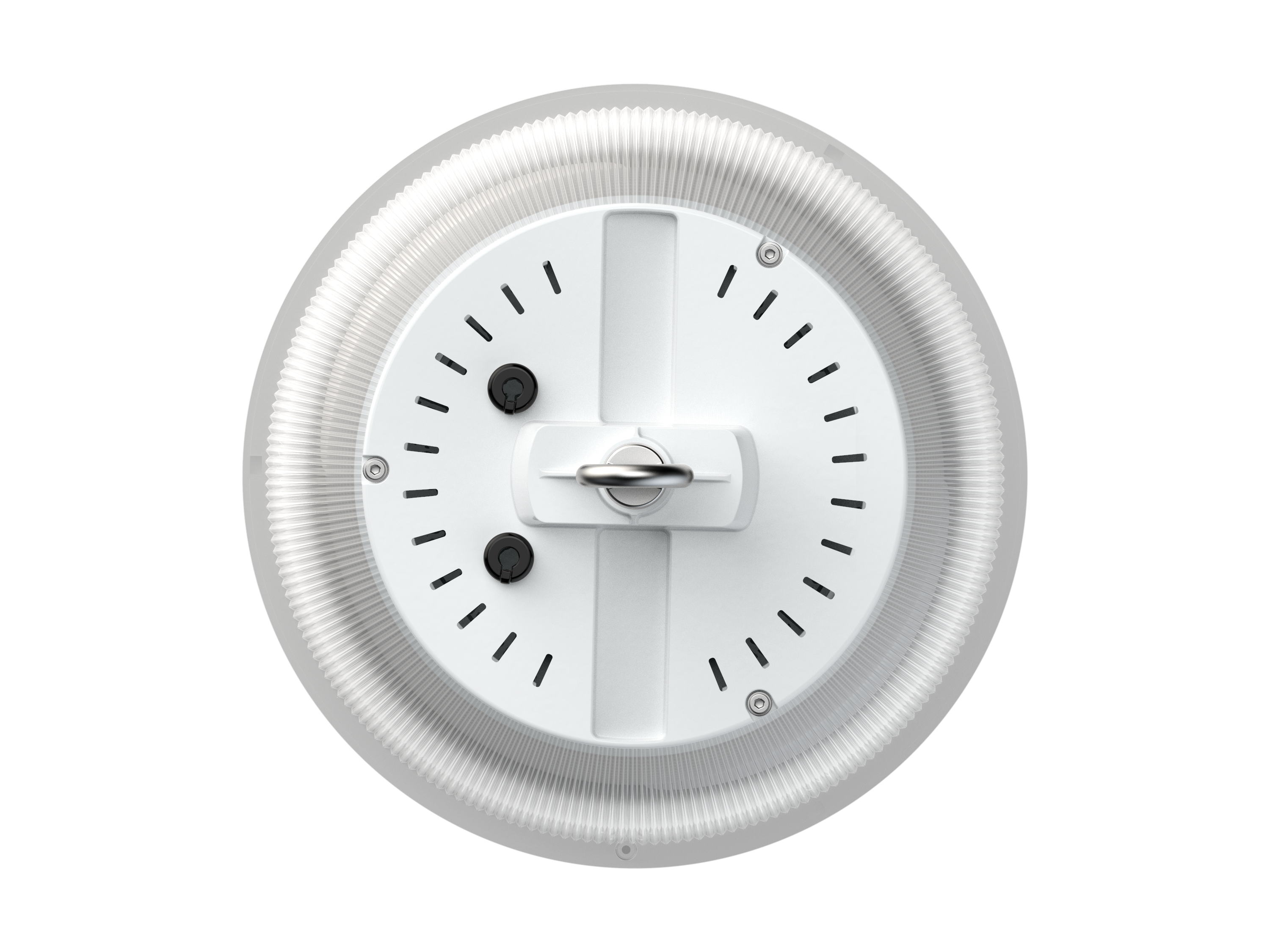

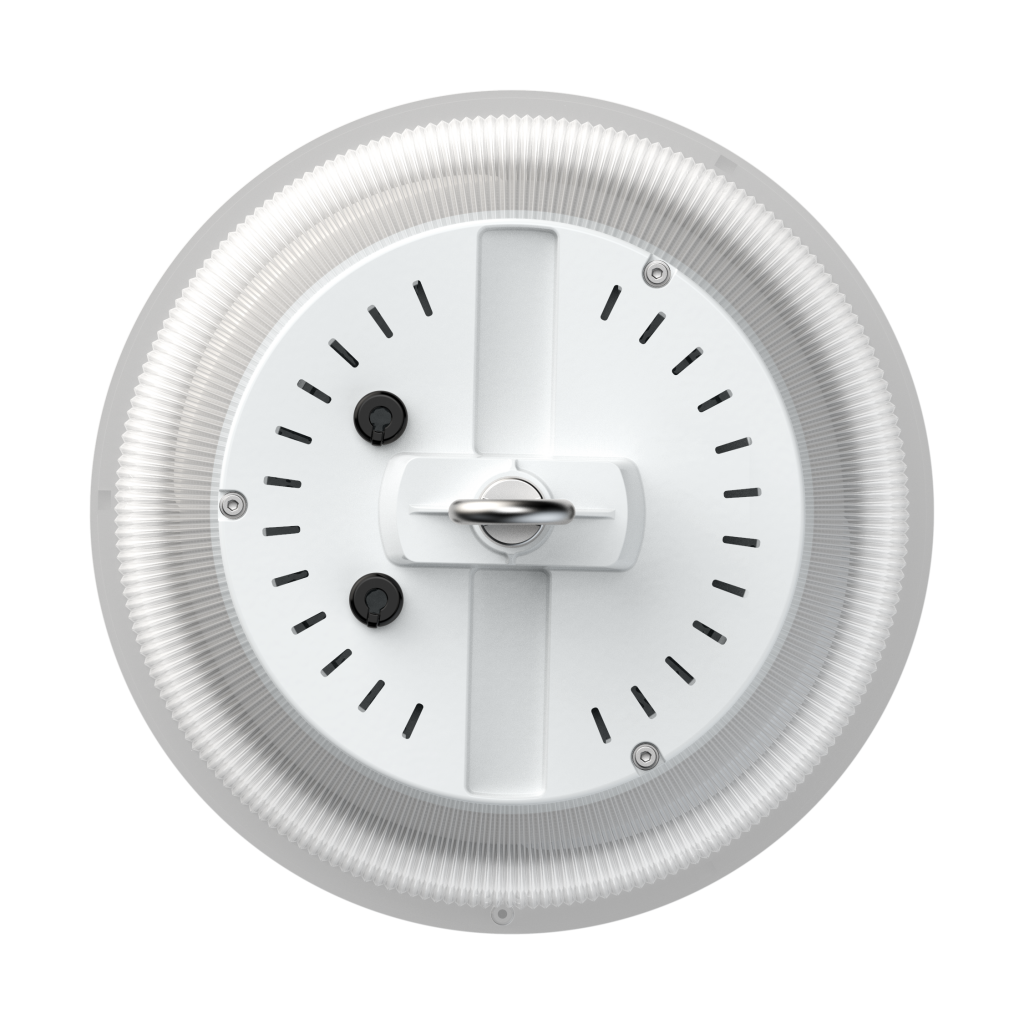

Oprawa HB-MINI cechuje się niższymi mocami znamionowymi (30W, 50W i 75W). Obudowa oprawy jest wykonana z malowanego proszkowo na kolor biały stopu aluminium, a klosz z transparentnego poliwęglanu (PC). HB-MINI może być stosowana zarówno w obiektach przemysłowych, magazynach jak i w wysokich holach galerii handlowych, szkół czy sal konferencyjnych. Oprawy z tej serii mogą zostać wyposażone w sterowane 1-10V lub DALI. W celu maksymalnego ograniczenia efektu olśnienia do oprawy można dodać pokrywę klosza wykonaną z poliwęglanu.
| Kod Oprawy | Moc [W] | Strumień świetlny [lm] | Sterowanie (*opcja) | IP | IK | CRI | Temp. barwowa [K] | Kąt rozsyłu [°] |
|---|---|---|---|---|---|---|---|---|
| GL-HB-MINI-30W-103-830 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 60 |
| GL-HB-MINI-30W-K03-830 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 60 |
| GL-HB-MINI-30W-104-830 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 90 |
| GL-HB-MINI-30W-K04-830 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 90 |
| GL-HB-MINI-30W-107-830 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 120 |
| GL-HB-MINI-30W-K07-830 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 120 |
| GL-HB-MINI-30W-103-840 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 60 |
| GL-HB-MINI-30W-K03-840 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 60 |
| GL-HB-MINI-30W-104-840 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 90 |
| GL-HB-MINI-30W-K04-840 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 90 |
| GL-HB-MINI-30W-107-840 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 120 |
| GL-HB-MINI-30W-K07-840 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 120 |
| GL-HB-MINI-30W-103-850 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 60 |
| GL-HB-MINI-30W-K03-850 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 60 |
| GL-HB-MINI-30W-104-850 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 90 |
| GL-HB-MINI-30W-K04-850 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 90 |
| GL-HB-MINI-30W-107-850 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 120 |
| GL-HB-MINI-30W-K07-850 | 30 | 4350 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 120 |
| GL-HB-MINI-50W-103-830 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 60 |
| GL-HB-MINI-50W-K03-830 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 60 |
| GL-HB-MINI-50W-104-830 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 90 |
| GL-HB-MINI-50W-K04-830 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 90 |
| GL-HB-MINI-50W-107-830 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 120 |
| GL-HB-MINI-50W-K07-830 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 120 |
| GL-HB-MINI-50W-103-840 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 60 |
| GL-HB-MINI-50W-K03-840 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 60 |
| GL-HB-MINI-50W-104-840 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 90 |
| GL-HB-MINI-50W-K04-840 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 90 |
| GL-HB-MINI-50W-107-840 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 120 |
| GL-HB-MINI-50W-K07-840 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 120 |
| GL-HB-MINI-50W-103-850 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 60 |
| GL-HB-MINI-50W-K03-850 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 60 |
| GL-HB-MINI-50W-104-850 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 90 |
| GL-HB-MINI-50W-K04-850 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 90 |
| GL-HB-MINI-50W-107-850 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 120 |
| GL-HB-MINI-50W-K07-850 | 50 | 7250 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 120 |
| GL-HB-MINI-75W-103-830 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 60 |
| GL-HB-MINI-75W-K03-830 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 60 |
| GL-HB-MINI-75W-104-830 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 90 |
| GL-HB-MINI-75W-K04-830 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 90 |
| GL-HB-MINI-75W-107-830 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 120 |
| GL-HB-MINI-75W-K07-830 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 3000 | 120 |
| GL-HB-MINI-75W-103-840 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 60 |
| GL-HB-MINI-75W-K03-840 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 60 |
| GL-HB-MINI-75W-104-840 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 90 |
| GL-HB-MINI-75W-K04-840 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 90 |
| GL-HB-MINI-75W-107-840 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 120 |
| GL-HB-MINI-75W-K07-840 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 4000 | 120 |
| GL-HB-MINI-75W-103-850 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 60 |
| GL-HB-MINI-75W-K03-850 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 60 |
| GL-HB-MINI-75W-104-850 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 90 |
| GL-HB-MINI-75W-K04-850 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 90 |
| GL-HB-MINI-75W-107-850 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 120 |
| GL-HB-MINI-75W-K07-850 | 75 | 10875 | /* 1-10V, DALI | 65 | 08 | 80 | 5000 | 120 |
